Truncated Octahedron Calculator

Truncated Octahedron Calculator







decimal places.

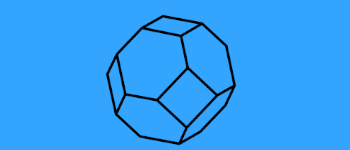

What is a Truncated Octahedron?

A truncated octahedron is a fascinating and symmetrical three-dimensional geometric solid that belongs to the family of Archimedean solids. It is created by truncating—or slicing off—the corners of a regular octahedron in such a way that all the faces become regular polygons. This transformation results in a shape that has 14 faces in total: 8 regular hexagons and 6 squares. The solid also has 36 edges and 24 vertices, and all its edges are of equal length.

One of the most remarkable features of the truncated octahedron is that it is a space-filling polyhedron. This means it can be used to completely fill three-dimensional space without overlapping or leaving gaps, which is a rare property among polyhedra. Because of this, the truncated octahedron is often studied in the context of geometric packing and tessellation.

Due to its balanced proportions and visual appeal, the truncated octahedron is not just a mathematical curiosity but also a shape that finds relevance in a wide range of disciplines, from science and engineering to art and design.

Applications of Truncated Octahedrons

The truncated octahedron plays an important role in several fields due to its unique geometry and space-filling properties. Below are some of its most common and practical applications:

  • Material Science: In materials research, especially in the study of foams and crystal structures, the truncated octahedron is used as a model for efficient packing and minimal surface configurations. Its shape can represent the internal structure of certain metals or foams that naturally organize themselves to minimize energy and maximize strength.
  • Chemistry: Some molecular and atomic structures resemble or are modeled by truncated octahedrons. Because atoms often arrange themselves in tightly packed patterns, the shape provides insight into chemical bonding and lattice formation, especially in complex organic and inorganic compounds.
  • Mathematics and Education: As a member of the Archimedean solids, the truncated octahedron is frequently used in classrooms and textbooks to teach geometric principles, including symmetry, surface area, volume, and polyhedral relationships. Its study helps students develop spatial reasoning and an appreciation for geometric beauty.
  • Architecture and Design: Architects and designers often take inspiration from geometric shapes like the truncated octahedron. Its structure is used in designing facades, sculptures, modular building blocks, and artistic installations. The combination of hexagonal and square faces allows for creative architectural patterns.
  • Computer Graphics and Game Development: In 3D modeling and digital environments, the truncated octahedron serves as a useful mesh or grid structure. Its symmetry and efficient use of space make it suitable for simulations, animations, and game level designs where complex shapes and patterns are required.
  • Biology: Natural systems sometimes mimic the geometry of truncated octahedrons. For example, some cellular structures and viruses exhibit similar packing and symmetry due to biological efficiency. The study of these shapes helps scientists understand natural organization and development.
  • Logistics and Packing: Because of its ability to fill space completely, the truncated octahedron has potential applications in packing and shipping industries. It serves as a theoretical model for arranging containers or units in a way that maximizes volume usage while maintaining structural integrity.

Understanding the Calculator

Overview of the Calculator Interface

The Truncated Octahedron Calculator is a user-friendly tool designed to compute various geometric properties of a truncated octahedron based on a single known value. The interface is simple and intuitive, allowing you to input one value and automatically calculate all related measurements.

The calculator is structured with clearly labeled input fields, a dropdown menu for selecting decimal precision, and two main action buttons:

  • Calculate: Processes your input and displays the calculated results in the corresponding fields.
  • Delete: Clears all input and output fields so you can start fresh.

You only need to provide one value—the calculator will determine all the other properties using precise mathematical formulas. If more than one value is entered, the calculator will prompt you to enter only one to ensure accuracy.

Explanation of Input Fields

Here’s what each field represents and how it contributes to understanding the truncated octahedron:

  • Edge length (a): The basic edge length of the truncated octahedron. This is the primary measurement from which all other properties can be derived.
  • Edge length of original octahedron (a′): This represents the edge length of the regular octahedron before it was truncated. It is related to the final shape's dimensions and equals 3 times the truncated octahedron’s edge length.
  • Surface area (A): The total area covering all the external faces of the shape. A truncated octahedron has both hexagonal and square faces, and this field calculates the total area combining both types.
  • Volume (V): The amount of three-dimensional space enclosed within the truncated octahedron. This is especially important for applications involving space packing or structural analysis.
  • Circumsphere radius (rc): The radius of the smallest sphere that completely encloses the entire polyhedron. This is useful in modeling, packing, or when enclosing the shape in a spherical boundary.
  • Midsphere radius (rm): The radius of the sphere that is tangent to all edges of the polyhedron at their midpoints. It gives insight into the shape’s internal symmetry.
  • Surface-to-volume ratio (A/V): This ratio helps compare how much surface area a shape has relative to its volume. It is commonly used in science and engineering to evaluate thermal, biological, or chemical efficiency.

At the bottom of the calculator, you’ll find a dropdown menu labeled "Round to" which lets you choose how many decimal places you want the results to be rounded to—from 0 to 15. This allows for either simplified or highly precise outputs depending on your needs.

Once you've entered a value in any one field, simply click “Calculate” to see the rest of the values populate automatically. If you wish to try a different value, click “Delete” to clear all fields and start again.

How to Use the Calculator

Step-by-step Guide to Performing Calculations

Using the Truncated Octahedron Calculator is quick and easy. Just follow these simple steps to get accurate results:

  1. Choose one known value to start with. This could be the edge length, surface area, volume, or any of the other input fields provided.
  2. Enter the value into the corresponding input box. Make sure to enter only one value at a time. If more than one field is filled in, the calculator will show an alert asking you to enter exactly one value.
  3. Select the desired number of decimal places from the "Round to" dropdown menu. This will determine the precision of your output.
  4. Click the “Calculate” button. The calculator will automatically compute all other values and display them in the respective fields.
  5. If you want to start over, click the “Delete” button to clear all inputs and results.

Choosing Decimal Precision: Explained

The calculator includes a dropdown menu labeled "Round to", which allows you to control the number of decimal places in the results. Here's how it works:

  • 0–2 decimal places: Best for quick estimates or when you don't need high precision.
  • 3–6 decimal places: Ideal for most scientific and engineering applications. This is the default setting.
  • 7–15 decimal places: Recommended for advanced calculations that require very high accuracy, such as in research or simulations.

Selecting the appropriate precision ensures your results are as simple or as detailed as you need, depending on the context.

Examples of Common Calculations

Example 1: Calculate All Properties from Edge Length

  • Enter 2 in the Edge length (a) field.
  • Select 3 decimal places.
  • Click “Calculate”.
  • The calculator will display:
    • Surface area (A) ≈ 83.138
    • Volume (V) ≈ 45.254
    • Circumsphere radius (rc) ≈ 3.162
    • Midsphere radius (rm) ≈ 3.000
    • Surface-to-volume ratio (A/V) ≈ 1.837
    • Edge length of original octahedron (a′) ≈ 6.000

Example 2: Find Edge Length from Volume

  • Enter 100 in the Volume (V) field.
  • Select 4 decimal places.
  • Click “Calculate”.
  • The calculator will determine the corresponding edge length and compute all other values based on that.

These examples show how you can quickly and accurately calculate all geometric properties of a truncated octahedron starting from just a single known value.

Reading and Interpreting Results

How to Interpret the Calculator Outputs

Once you enter a single value and click “Calculate,” the calculator fills in the remaining fields using precise geometric formulas. Each field provides insight into the geometry of a truncated octahedron:

  • Edge Length (a): The length of each edge of the truncated octahedron. This value is central to calculating all other properties.
  • Edge Length of Octahedron (a′): The equivalent edge length of the original octahedron before truncation, which is always three times the edge length of the truncated shape.
  • Surface Area (A): Represents the total area of the outer surface, combining all square and hexagonal faces.
  • Volume (V): The amount of space the solid occupies. Useful in design, packing, or modeling scenarios.
  • Circumsphere Radius (rc): Indicates how large a sphere would need to be to surround the entire solid.
  • Midsphere Radius (rm): Shows the size of a sphere that touches the center of each edge—used to understand the internal symmetry of the solid.
  • Surface-to-Volume Ratio (A/V): Tells you how much surface area exists relative to the internal volume—a common indicator in physics and engineering to evaluate material exposure.

Common Questions and Troubleshooting Tips

  • Why won’t the calculator work?
    Ensure that you’ve entered exactly one value. If more than one field has a number, the calculator won’t proceed and will show an alert.
  • Why do the results look incorrect?
    Double-check your input for typos or misplaced decimal points. Also make sure you're using the correct units consistently.
  • Can I enter negative numbers?
    No. Geometric measurements must be positive values only.
  • How do I reset everything?
    Click the “Delete” button to clear all fields and start over.

Mathematical Formulas

Formulas Behind the Calculator

The calculator uses the following standard formulas for a truncated octahedron:

  • Surface Area (A):
    A = 6 × a² × (1 + 2 × √3)
  • Volume (V):
    V = 8 × a³ × √2
  • Circumsphere Radius (rc):
    rc = (a / 2) × √10
  • Midsphere Radius (rm):
    rm = (3 × a) / 2
  • Surface-to-Volume Ratio (A/V):
    A / V = [6 × (1 + 2 × √3)] / (8 × a × √2)
  • Edge Length of Octahedron (a′):
    a′ = 3 × a

Benefits and Limitations

Advantages of Using This Calculator

  • Quick and accurate: Calculates all key properties of a truncated octahedron from a single value.
  • Educational tool: Great for students, teachers, and geometry enthusiasts to learn and explore solid shapes.
  • User-friendly interface: No complex inputs—just one value and a click to get results.
  • Custom precision: Choose how many decimal places you want for your calculations.
  • Instant feedback: Alerts you if multiple values are entered by mistake.

Limitations and Things to Keep in Mind

  • The calculator assumes perfect geometry. It’s not designed for irregular or distorted shapes.
  • Only one value can be entered at a time. Entering more than one will cancel the calculation.
  • Units are not displayed, so make sure all inputs and results use the same measurement system (e.g., meters, inches).
  • It doesn’t save your data. Refreshing the page or clicking "Delete" will erase everything.

Frequently Asked Questions (FAQ)

  • Can I use this calculator on my phone?
    Yes, the calculator is fully responsive and works on smartphones, tablets, and desktops.
  • Do I need to install anything?
    No installation is needed—just open the calculator page in your browser and start using it.
  • Does it work offline?
    As long as the page is loaded in your browser, the calculator will function without an internet connection.
  • Can I use decimal numbers?
    Yes. You can input decimal numbers with any level of precision, and choose how many decimal places the results should show.
  • Is this calculator suitable for engineering use?
    While it's useful for educational and basic design purposes, professional engineers should double-check with industry-specific tools for critical applications.

References

  • Regular Polytopes – H. S. M. Coxeter, 1973, Dover Publications
  • Polyhedron Models – Magnus J. Wenninger, 1971, Cambridge University Press
  • Shapes, Space, and Symmetry – Alan Holden, 1991, Dover Publications
  • Polyhedra – Peter R. Cromwell, 1997, Cambridge University Press
  • Mathematical Recreations and Essays – W. W. Rouse Ball and H. S. M. Coxeter, 1987, Macmillan
